How to lock & unlock a RYOBI 18V ONE+ 184mm Mitre Saw's handle

Safety First

• Disconnect the battery/disconnect power cord before making any adjustments.
• Wear eye protection and gloves to avoid injury.

How to Unlock a RYOBI 18V ONE+ 184mm Mitre Saw

1. Pull down the handle and hold it in the lowered position.
   This relieves pressure on the locking mechanism. For more details, visit ryobi.com.au.
2. Locate the locking pin on the right-hand side of the saw.
   Pull the pin all the way out to release the handle lock.
3. Slowly raise the saw handle.
   Check that it moves freely up and down before use.
   See also: “How to fix a RYOBI 18V ONE+ 184mm Mitre Saw with a jammed handle.”

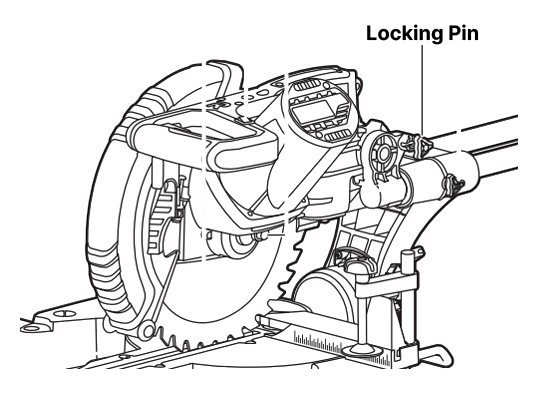

How to Lock a RYOBI 18V ONE+ 184mm Mitre Saw for Storage

1. Lower the saw handle fully.
   Push the handle down so the blade is covered by the guards.
2. Push the locking pin in on the right-hand side.
   This secures the handle in the down position for safe storage or transport.
3. Confirm the saw is locked.
   The handle should stay down and not lift until the pin is pulled out again.
