Fix a RYOBI 18V ONE+ 184mm Mitre Saw's jammed handle

How to Fix a Jammed Handle on a RYOBI 18V ONE+ 185mm Mitre Saw

Safety First

• Remove the battery before attempting any adjustments.
• Wear gloves to protect your hands.

Step-by-Step Instructions

1. Pull down the handle and hold it in the lowered position
This relieves pressure on the locking pin.

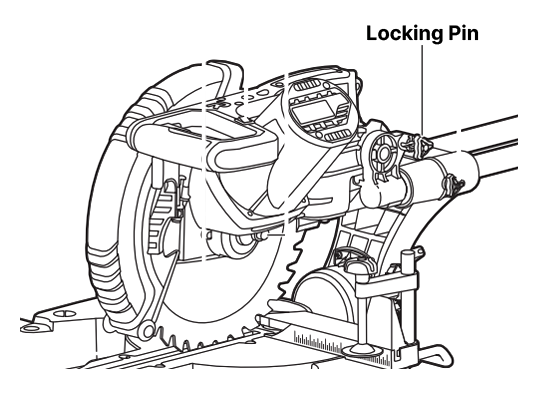

2. Locate the locking pin on the right-hand side of the saw

• If the pin is stuck, gently wiggle it while pulling outward.
• Do not force it with excessive pressure—this can damage the mechanism.

3. Apply light lubrication if needed

• Use a small amount of silicone spray or dry lubricant around the pin area to free any debris or dust.
• Wipe away excess lubricant to avoid attracting more dust.

4. Check for obstructions

• Inspect the area around the pin and handle for sawdust or debris.
• Clean thoroughly using a brush or vacuum.

5. Release the pin fully and slowly raise the handle

• Once the pin moves freely, pull it all the way out and gently lift the handle.
• Check that the handle moves up and down without resistance.

6. Test the lock/unlock function

• Push the pin back in to lock the handle, then pull it out to unlock.
• If the mechanism still jams, contact an authorised service centre.
