RYOBI 210MM Compound Mitre Saw handle is jammed

How to Fix a Jammed Handle on a RYOBI 210mm Mitre Saw


Safety First

• Unplug saw from power outlet
• Wear gloves to protect your hands.


Step-by-Step Instructions

1. Pull down the handle and hold it in the lowered position
   This relieves pressure on the locking pin.

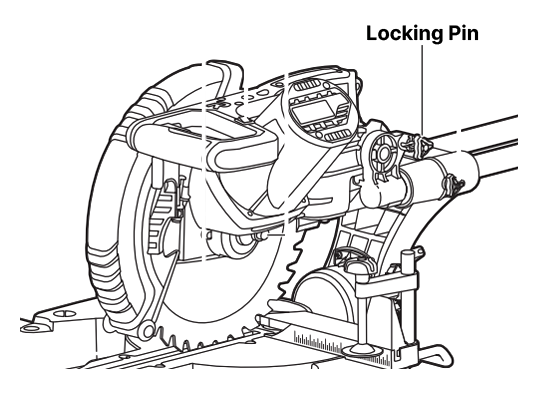

2. Locate the locking pin on the right-hand side of the saw
   • If the pin is stuck, gently wiggle it while pulling outward.
   • Do not force it with excessive pressure—this can damage the mechanism.
3. Apply light lubrication if needed
   • Use a small amount of silicone spray or dry lubricant around the pin area to free any debris or dust.
   • Wipe away excess lubricant to avoid attracting more dust.
4. Check for obstructions
   • Inspect the area around the pin and handle for sawdust or debris.
   • Clean thoroughly using a brush or vacuum.
5. Release the pin fully and slowly raise the handle
   • Once the pin moves freely, pull it all the way out and gently lift the handle.
   • Check that the handle moves up and down without resistance.
6. Test the lock/unlock function
   • Push the pin back in to lock the handle, then pull it out to unlock.
