How to Remove A blade from A Ryobi Left-side Circular Saw

How to Remove a Blade from a Left-Hand Circular Saw

Safety First

1. Disconnect the power source

• For corded saws: unplug from the mains.
• For cordless saws: remove the battery pack.

This prevents accidental activation.

2. Wear eye protection and gloves to avoid injury.


Step-by-Step Instructions

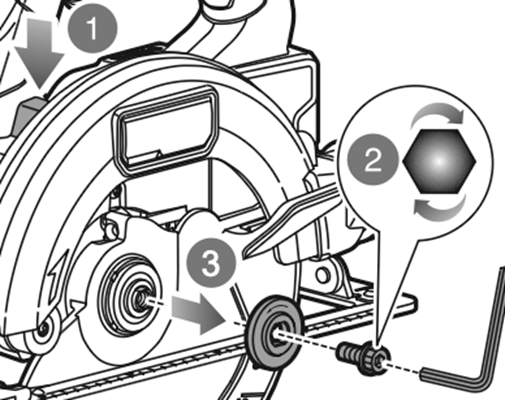

1. Engage the spindle lock

• Press and hold the spindle lock button (or use the locking mechanism provided) to stop the spindle from turning.

2. Move the lower blade guard out of the way

• Lift or retract the guard using the retracting handle so you can access the spindle and blade.
• Keep fingers clear of the blade area at all times.

3. Loosen the blade bolt

• Use the Allen key supplied with the saw to turn the bolt clockwise to loosen it.

4. Remove the outer flange and blade

• Take off the outer flange and carefully slide the blade off the spindle.
• Handle the blade carefully—it may still be sharp or hot.

5. Release the blade guard

• Ensure the guard moves freely and automatically covers the spindle area.

Final Checks

• Store the blade safely away from the work area.
• Reconnect the power only when you are ready to fit a new blade or resume work.
