How to maintain my chainsaw?

02/05/2025, 19:40

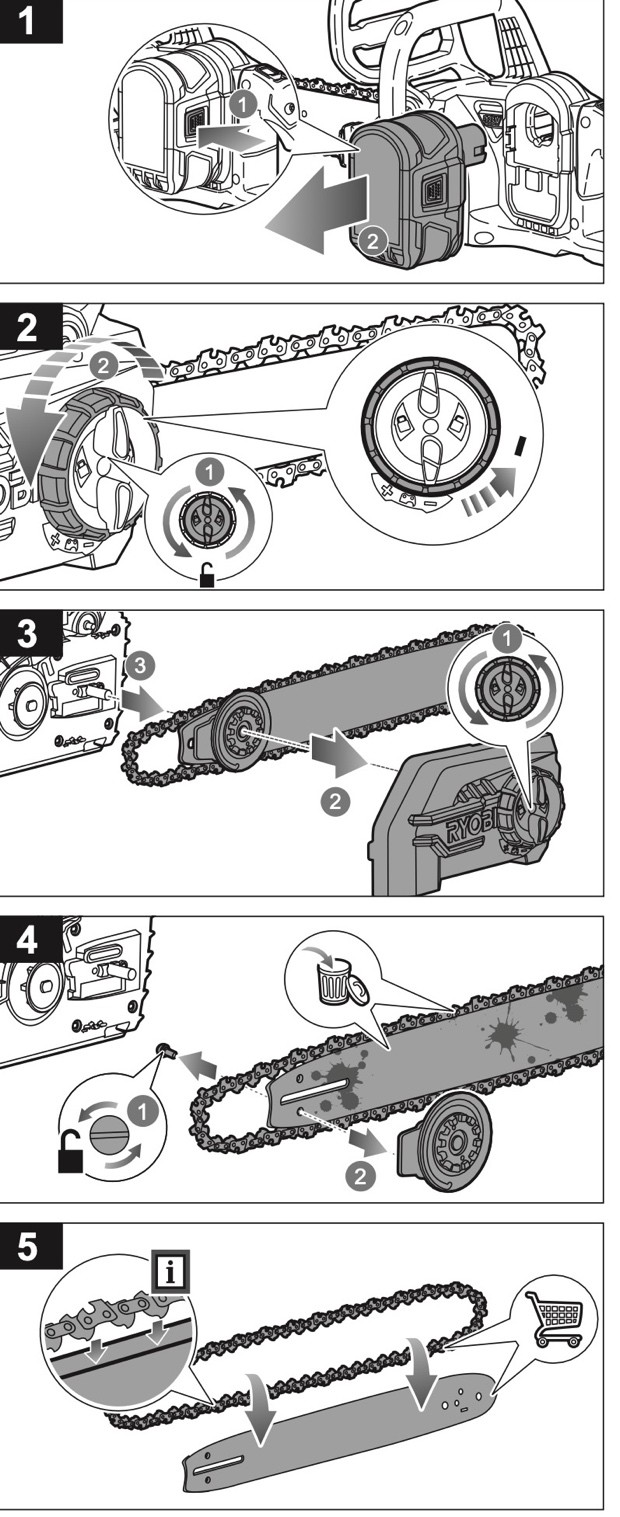

  1. Remove the battery pack.
  2. Loosen the chain tension: Turn the chain tensioner knob and adjustment ring counterclockwise.
  3. Remove the sprocket cover: Loosen the cover, then take off the bar and saw chain.
  4. Take out the old chain tensioner: Dispose of the old bar and chain properly.
  5. Install the new saw chain: Place it on the bar.

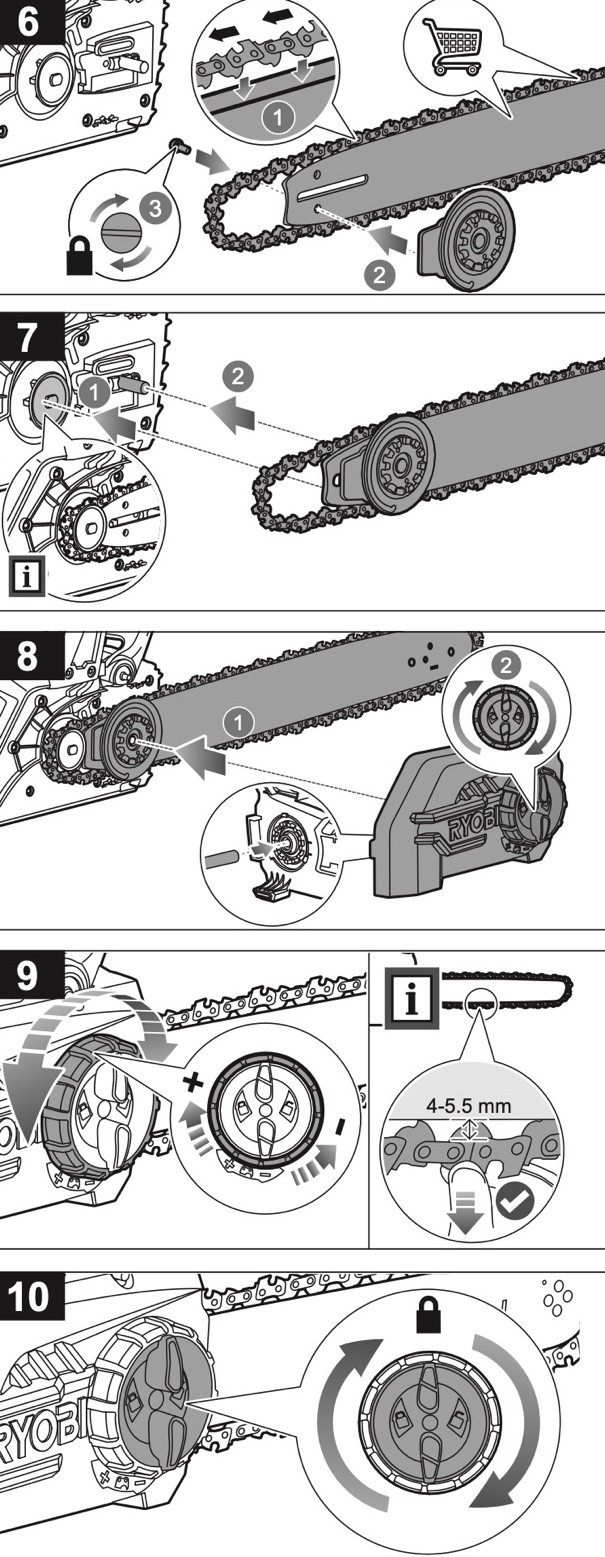

  6. Position the chain: Insert the drive links into the bar groove, ensuring the chain faces the right direction.
  7. Reattach the bar: Loop the chain around the sprocket and align it with the tensioner. Tighten the chain as needed.
  8. Reinstall the cover: Put back the inner tensioner and sprocket cover.
  9. Adjust chain tension: Ensure there’s a 4-5.5 mm gap between the drive teeth and bar, adjusting as necessary.
  10. Secure everything: Lock the chain tensioner and sprocket cover in place.

How to maintain my chainsaw item 1-5How to maintain my chainsaw item 6-10









RELATED SUPPORT

Share
Applicable Models

R36XCHS10, R36XCHS26, R18CHS20, R36XCHS14, OCS1830BL, RCS1830BLX4, RCS36X4, RCS36B1, RCS2340B, RCS36HP, R18CHS22, R36CHS12, OPS18, OPP1850, RPP1820Li20, OCS1825, RPP3600
